Configure thematic mapping

To display shaded (thematic) maps, you need to obtain a shape file that defines the boundaries of the geographic entity displayed. A shape file, or boundary file, is actually a set of several files. A .shp file defines each set of shapes you use, containing the geographic shapes. A .shx file contains a shape index (FastStats doesn't use or require this). A .dbf file connects the shapes to the data.

For a more detailed explanation, see Shapefile on Wikipedia.

The boundaries may include:

  • Continents
  • Countries
  • Counties
  • Regions
  • Postcode areas
  • Postcode districts
  • Postcode sectors
  • 5-digit zip codes
  • 3-digit zip codes
  • Territories

Your shape files need to use the WGS84 co-ordinate system. You need to convert your shape files to WGS84 if you received them in the UK National Grid or another co-ordinate system. See Resources for details of utilities to help create the appropriate shape files.

Once you have the .shp file and the associated .dbf file, link the shape file's polygons to the FastStats variable's data. FastStats builds thematic maps from selector variables that have a series of categories, each with a code and description. You need to add these codes to the .dbf file by adding two columns:

  • FS_CODE: populate with the codes for each appropriate category in the FastStats selector
  • FS_DESC: optionally populate with the descriptive text for each category in the FastStats selector variable

Boundary files for thematic mapping

UK boundaries

The following boundaries are available from Apteco via their partners:

  • UK postcode area
  • UK postcode district
  • UK postcode sector

Apteco configures these boundary files to the WGS84 co-ordinate system and codes them to match the typical decodes for each postcode variable.

For FastStats systems that use non-standard decodes, contact Apteco for details on editing the .dbf files.

Other boundaries

If you choose to source your own boundary files, you may need instructions on how to configure them for use within FastStats. Contact Apteco via your partner for documentation and support.

Boundary file names

It's easiest to rename your boundary files to the reference name of the equivalent FastStats variable. However, if you wish to retain the original boundary names, you may provide the GeoFormat parameter in your autoexec.fsf file:

Text Only
datadef.variable(x).GeoFormat="y"

Where x is the variable reference as stated in the system, and y is the name you have called your shape file.

Installing boundary files

You'll find boundary files in the Maps folder, at one of the following locations:

Note

You need to create the appropriate Maps folder when adding online mapping to a FastStats system, if not already in place.

  • On the web server in …\FastStats\Maps, if using the Apteco FastStats Launcher
  • On the user's PC in …\Program Files\Apteco\FastStats Discoverer (x64)\Maps, for a locally installed Apteco FastStats connecting to a local system (i.e. using a .system.xml connection file such as when launched from FastStats Designer)
  • On the user's PC in …\Program Files\Apteco\FastStats Discoverer (x64)\Maps, for a locally installed Apteco FastStats connecting to an Enterprise system (i.e. via the FastStats WebService)

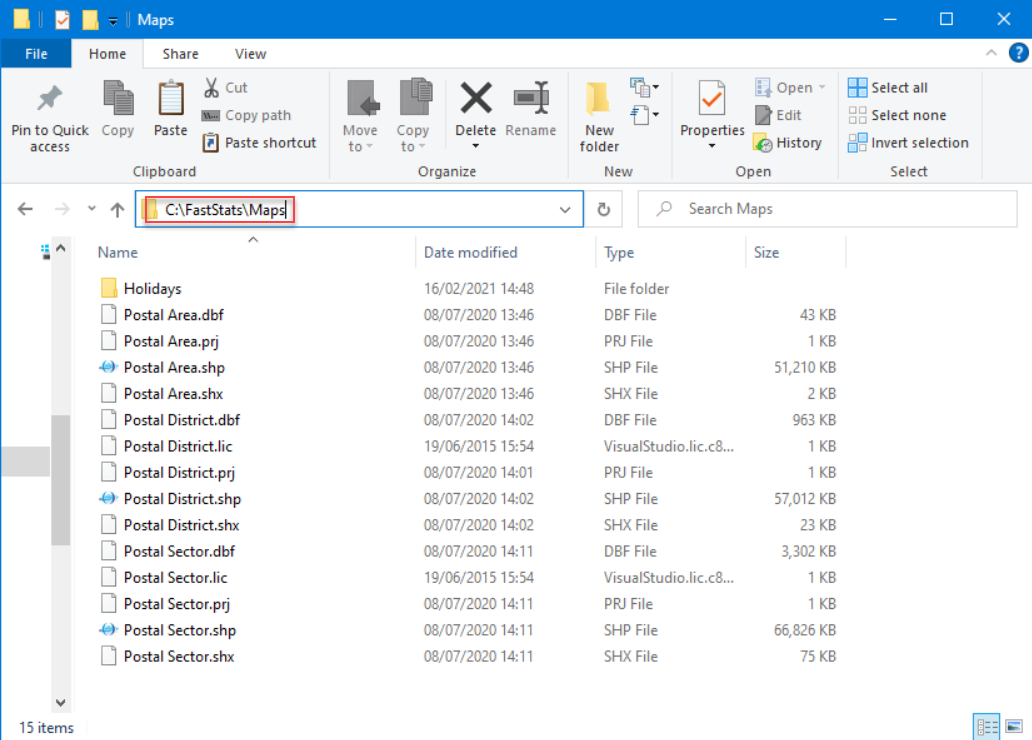

FastStats Maps folder structure

Inserting boundary files into binaries

The process of installing the boundary files into the Client Binaries is the same as installing the Bing key up to step 5. From step 5, insert the boundary files by selecting all files (except the [SystemName] folder) and selecting Open:

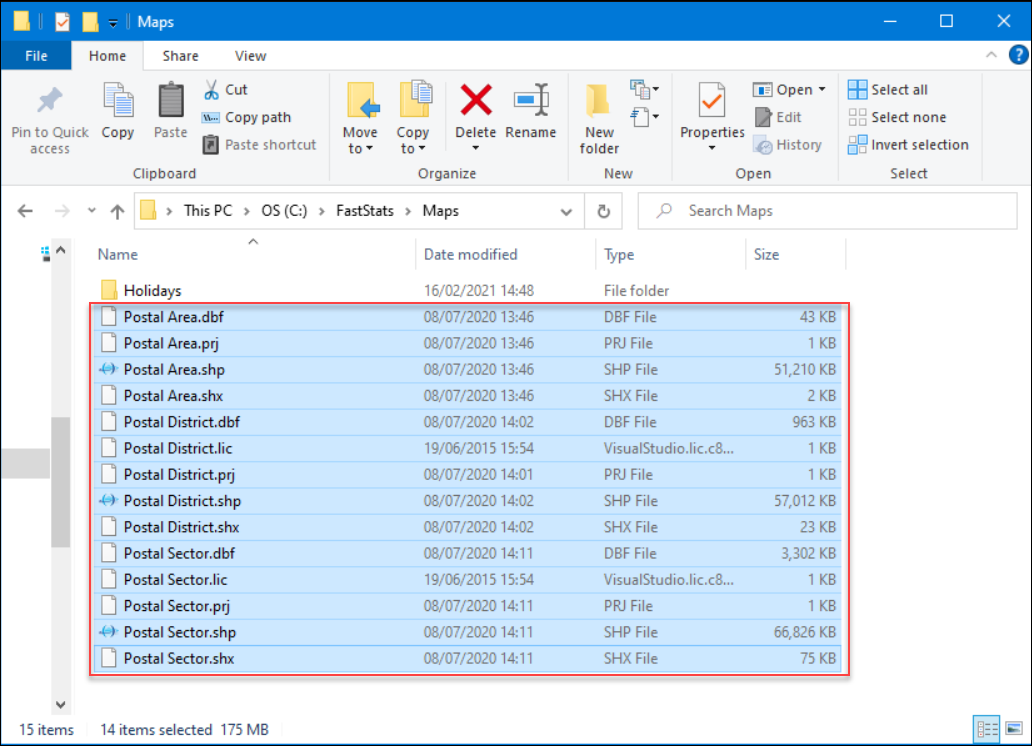

All boundary files selected in Add or Replace File(s) menu

The files are then displayed in the Add or Replace File(s) menu window as files to add. Insert Binaries\Maps into the Base path in database field and select OK:

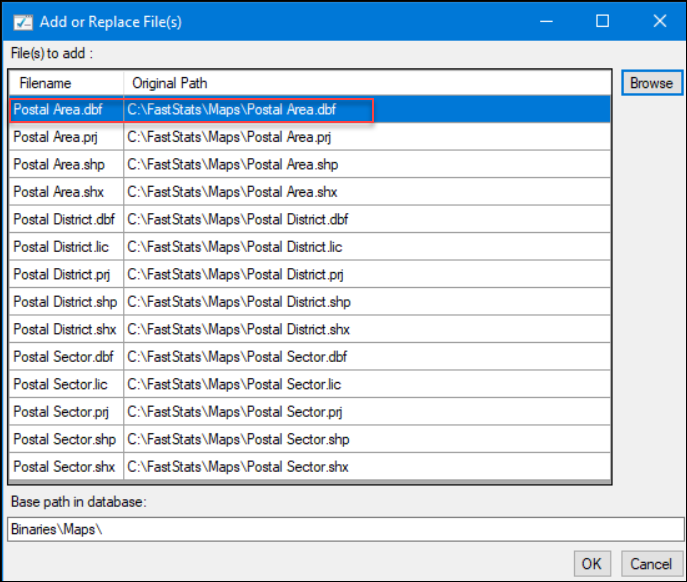

Binaries Maps base path field with boundary files

The files should now be viewable in the Customise Binaries window:

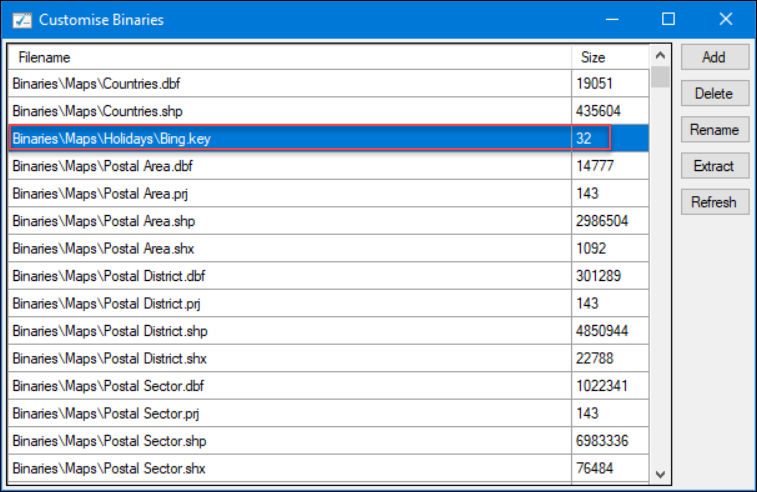

Customise Binaries window showing boundary files
