Email templates

The following Orbit actions will generate an email:

A reset password request
Sharing an Orbit item
Stop sharing an item
Shared item updated
New user registration
Account locked

Orbit includes a set of default email templates for each action.

You can create your own custom email templates by adding a modified set of files to the emailTemplates folder.

Note

The standard location is C:\inetpub\wwwroot\OrbitAPI\emailTemplates, but you can change it in the settings.

Creating your own email templates¶

To create a custom email that persists between updates, rename the file: remove the Template suffix and add the Custom prefix.

The default file names are:

ResetPasswordRequestNotificationEmailTemplate.html
SharedNotificationEmailTemplate.html
UnsharedNotificationEmailTemplate.html
UpdatedShareNotificationEmailTemplate.html
UserRegistrationRequestNotificationEmailTemplate.html
AccountLockedEmailTemplate.html

The equivalent custom file names are:

CustomResetPasswordRequestNotificationEmail.html
CustomSharedNotificationEmail.html
CustomUnsharedNotificationEmail.html
CustomUpdatedShareNotificationEmail.html
CustomUserRegistrationRequestNotificationEmail.html
CustomAccountLockedEmail.html

Note

Orbit recreates the default files on each release, but leaves any custom files untouched.

Orbit also includes text versions of the files. It doesn't use the .txt version of a file if a .html version is present. It also doesn't use a default file if a custom file is present. Orbit checks for files in the following order, and uses the first one it finds:

CustomSharedNotificationEmail.html > CustomSharedNotificationEmail.txt > SharedNotificationEmailTemplate.html > SharedNotificationEmailTemplate.txt

Text Only

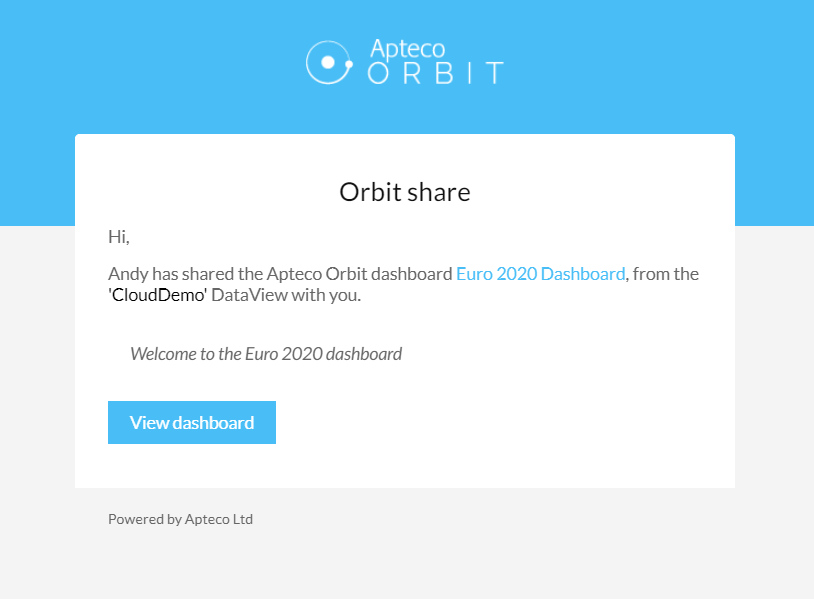

{{User.Firstname}} has shared {{Shareable.Title}} with you
<!DOCTYPE html>
<html>
<head>
    <title></title>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" >
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <meta http-equiv="X-UA-Compatible" content="IE=edge" >
    <style type="text/css">
        /* FONTS */
        @media screen {
            @font-face {
                font-family: 'Lato';
                font-style: normal;
                font-weight: 400;
                src: local('Lato Regular'), local('Lato-Regular'), url(https://fonts.gstatic.com/s/lato/v11/qIIYRU-oROkIk8vfvxw6QvesZW2xOQ-xsNqO47m55DA.woff) format('woff');
            }

            @font-face {
                font-family: 'Lato';
                font-style: normal;
                font-weight: 700;
                src: local('Lato Bold'), local('Lato-Bold'), url(https://fonts.gstatic.com/s/lato/v11/qdgUG4U09HnJwhYI-uK18wLUuEpTyoUstqEm5AMlJo4.woff) format('woff');
            }

            @font-face {
                font-family: 'Lato';
                font-style: italic;
                font-weight: 400;
                src: local('Lato Italic'), local('Lato-Italic'), url(https://fonts.gstatic.com/s/lato/v11/RYyZNoeFgb0l7W3Vu1aSWOvvDin1pK8aKteLpeZ5c0A.woff) format('woff');
            }

            @font-face {
                font-family: 'Lato';
                font-style: italic;
                font-weight: 700;
                src: local('Lato Bold Italic'), local('Lato-BoldItalic'), url(https://fonts.gstatic.com/s/lato/v11/HkF_qI1x_noxlxhrhMQYELO3LdcAZYWl9Si6vvxL-qU.woff) format('woff');
            }
        }

        /* CLIENT-SPECIFIC STYLES */
        body, table, td, a {
            -webkit-text-size-adjust: 100%;
            -ms-text-size-adjust: 100%;
        }

        table, td {
            mso-table-lspace: 0pt;
            mso-table-rspace: 0pt;
        }

        img {
            -ms-interpolation-mode: bicubic;
        }

        /* RESET STYLES */
        img {
            border: 0;
            height: auto;
            line-height: 100%;
            outline: none;
            text-decoration: none;
        }

        table {
            border-collapse: collapse !important;
        }

        body {
            height: 100% !important;
            margin: 0 !important;
            padding: 0 !important;
            width: 100% !important;
        }

        /* iOS BLUE LINKS */
        a\[x-apple-data-detectors\] {
            color: inherit !important;
            text-decoration: none !important;
            font-size: inherit !important;
            font-family: inherit !important;
            font-weight: inherit !important;
            line-height: inherit !important;
        }

        /* MOBILE STYLES */
        @media screen and (max-width:600px) {
            h1 {
                font-size: 32px !important;
                line-height: 32px !important;
            }
        }

        /* ANDROID CENTER FIX */
        div\[style*="margin: 16px 0;"\] {
            margin: 0 !important;
        }

        .shareable-button:visited,
        .shareable-button:focus,
        .shareable-button:active {
            color: #ffffff;
        }
    </style>
</head>
<body style="background-color: #f4f4f4; margin: 0 !important; padding: 0 !important;">

    <table border="0" cellpadding="0" cellspacing="0" width="100%">

        <tr>
            <td bgcolor="#02bff6" align="center">

                <table border="0" cellpadding="0" cellspacing="0" width="100%" style="max-width: 600px;">
                    <tr>
                        <td align="center" valign="top" style="padding: 40px 10px 40px 10px;">
                            <img alt="Logo" src="../{{StaticResources.BaseUrl}}logo-orbit-apteco-white-01.png" width="180" border="0">
                        </td>
                    </tr>
                </table>

            </td>
        </tr>

        <tr>
            <td bgcolor="#02bff6" align="center" style="padding: 0px 10px 0px 10px;">

                <table border="0" cellpadding="0" cellspacing="0" width="100%" style="max-width: 600px;">
                    <tr>
                        <td bgcolor="#ffffff" align="center" valign="top" style="padding: 40px 20px 20px 20px; border-radius: 4px 4px 0px 0px; color: #111111; font-family: 'Lato', Helvetica, Arial, sans-serif; font-size: 48px; font-weight: 400;  line-height: 24px;">
                            <h1 style="font-size: 24px; font-weight: 400; margin: 0;">Orbit share</h1>
                        </td>
                    </tr>
                </table>

            </td>
        </tr>

        <tr>
            <td bgcolor="#f4f4f4" align="center" style="padding: 0px 10px 0px 10px;">

                <table border="0" cellpadding="0" cellspacing="0" width="100%" style="max-width: 600px;">

                    <tr>
                        <td bgcolor="#ffffff" align="left" style="padding: 0px 30px 15px 30px; color: #666666; font-family: 'Lato', Helvetica, Arial, sans-serif; font-size: 16px; font-weight: 400; ">
                            <p style="margin: 0;">Hi,
                        </td>
                    </tr>

                    <tr>
                        <td bgcolor="#ffffff" align="left" style="padding: 0px 30px 20px 30px; color: #666666; font-family: 'Lato', Helvetica, Arial, sans-serif; font-size: 16px; font-weight: 400;">
                            <p style="margin: 0;">{{User.Firstname}} has shared the Apteco Orbit {{Shareable.ShareableTypeLowercase}} <a href="../{{Shareable.Url}}" target="_blank" style="color: #02bff6; text-decoration: none;">{{Shareable.Title}}</a>, from the <span style="color: #000000;">'{{Api.DataView}}'</span> DataView with you.
                        </td>
                    </tr>

                    <tr>
                        <td bgcolor="#ffffff" align="left" style="padding: 0px 50px 20px 50px; color: #666666; font-family: 'Lato', Helvetica, Arial, sans-serif; font-size: 16px; font-weight: 400;">
                            <p style="margin: 0;"><pre style="font-family: 'Lato', Helvetica, Arial, sans-serif; font-style: italic; font-size: 16px; line-height: 1em;">{{Shareable.UpdateMessage}}</pre>
                        </td>
                    </tr>

                    <tr>
                        <td bgcolor="#ffffff" align="left" style="padding: 0px 30px 40px 30px; color: #666666; font-family: 'Lato', Helvetica, Arial, sans-serif; font-size: 16px; font-weight: 400; ">
                            <p style="margin: 0;"><a href="../{{Shareable.Url}}" target="_blank" style="text-decoration: none; background-color: #02bff6; color: #ffffff; border-top: 10px solid #02bff6; border-right: 20px solid #02bff6; border-bottom: 10px solid #02bff6; border-left: 20px solid #02bff6;display: inline-block;" class="shareable-button">View {{Shareable.ShareableTypeLowercase}}</a>
                        </td>
                    </tr>
                </table>

            </td>
        </tr>


        <tr>
            <td bgcolor="#f4f4f4" align="center" style="padding: 0px 10px 0px 10px;">

                <table border="0" cellpadding="0" cellspacing="0" width="100%" style="max-width: 600px;">

                    <tr>
                        <td bgcolor="#f4f4f4" align="left" style="padding: 20px 30px 30px 30px; color: #666666; font-family: 'Lato', Helvetica, Arial, sans-serif; font-size: 13px; font-weight: 400; line-height: 16px;">
                            <p style="margin: 0;">Powered by Apteco Ltd
                        </td>
                    </tr>
                </table>

            </td>
        </tr>
    </table>

</body>
</html>
